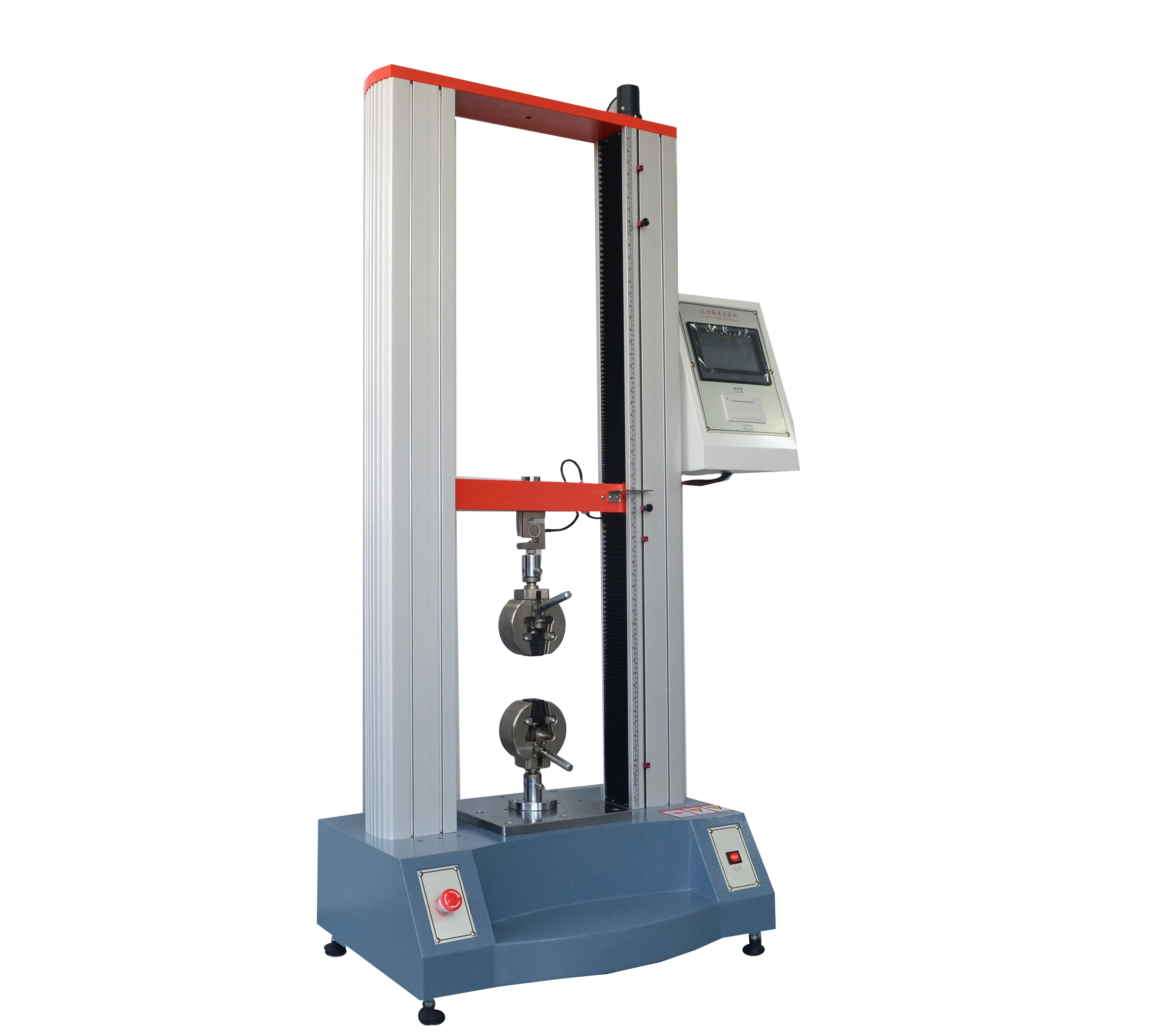

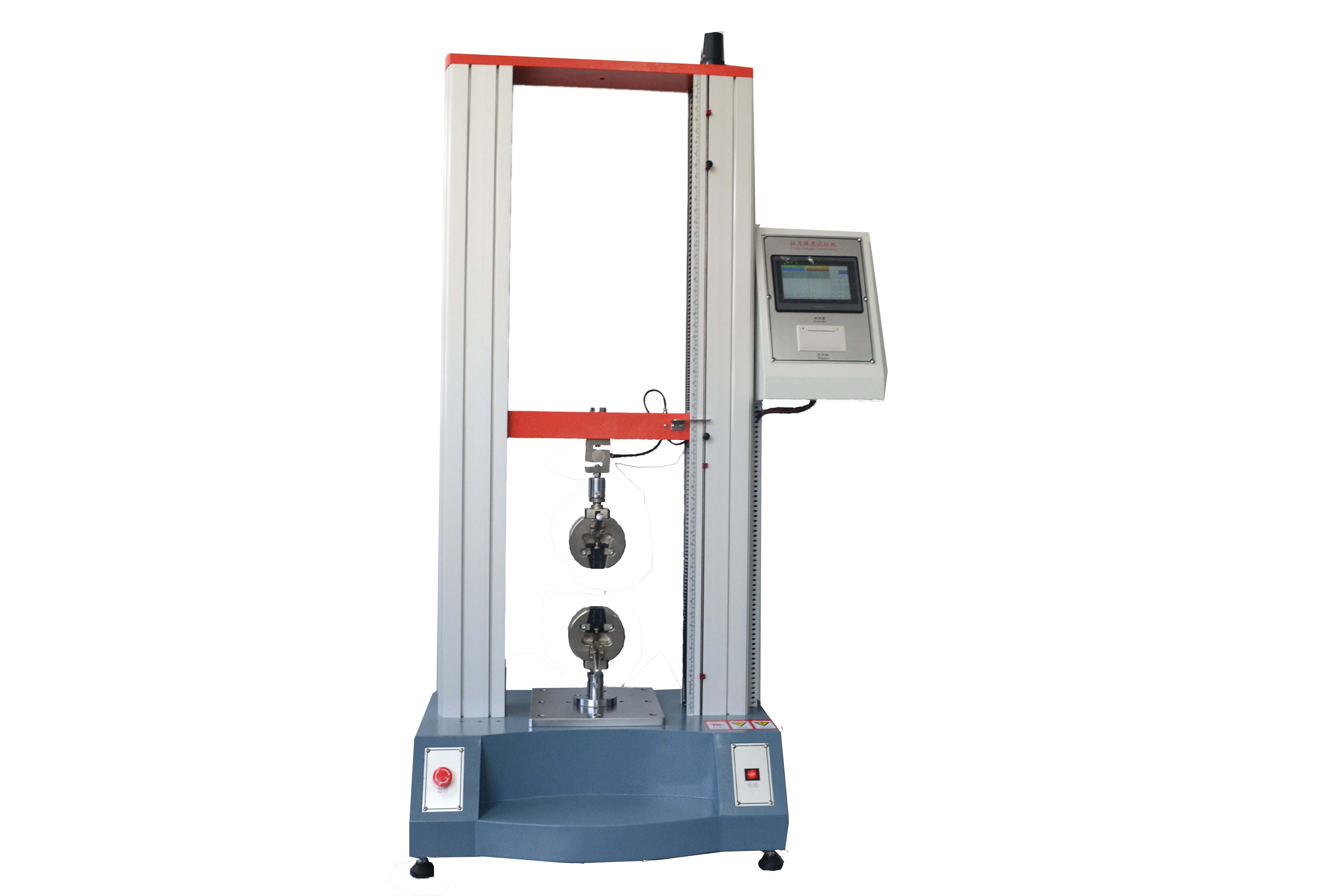

JZY-104 micro electric double column tensile tester is applicable to flexible materials with large deformation, such as rubber, plastic, plastic film, etc. It can complete tensile, tear, adhesive strength, peel (90 ° and 180 °) and other tests< br />
*The AC variable frequency motor is used to drive the precision ball screw, which is stable in operation and low in noise< br />
*Digital display of force value, maximum force value and displacement, and stepless adjustment of test speed< br />
*High precision encoder is used to measure displacement, with force value resolution up to 1/25000, high test precision, wide measurement range and convenient operation< br />
*It has the functions of automatic stop, over-current, over-voltage and overload protection for test breaking< br />
*Micro printer is equipped to print test data in real time< br />
Technical parameters of JZY-104 micro electric double column tensile testing machine:
Capacity selection
200,500,1000，2000kg
Force measuring accuracy
Value indicating± Within 0.5%
Display mode
LCD Chinese display, membrane button
Unit switching
Kg、lb、N
Data sampling frequency
200times/sec
Resolution of testing machine
Maximum load 1/± 25000 yards, no internal and external grading, and the whole range resolution remains unchanged
Load cell
Basic configuration: tension and compression sensors (maximum load)
Effective test width
380mm
Stretch space effectively
800mm
Test speed range
50-300 mm/min stepless speed regulation and 5-gear constant speed (special test speed can also be customized according to customer requirements)
Displacement measurement accuracy
Value indicating± Within 0.5%
Breakpoint ratio setting
0~99%, the user can set the appropriate break downtime according to different materials
Test bench safety device
Up and down stroke limiting device
Overload protection
The machine is automatically protected when the maximum load exceeds 10%
Fixture configuration
One set of stretching clamp
Host size
800× 550× 1800mm
Main engine weight
About 180 Kg
Power Supply
220V/50Hz
